LZR-WIDESCAN MOTION, PRESENCE & SAFETY SENSOR FOR INDUSTRIAL DOORS

LZR-WIDESCAN MOTION, PRESENCE & SAFETY SENSOR FOR INDUSTRIAL DOORS

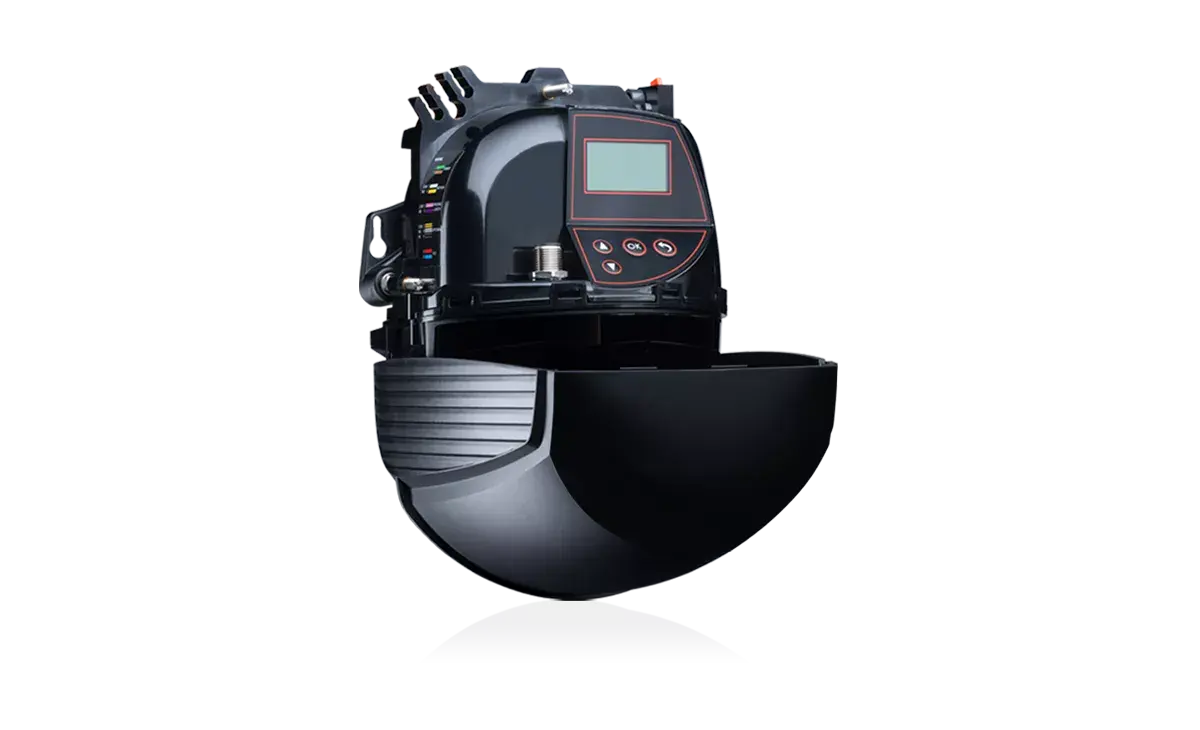

BEA’s LZR®-WIDESCAN is a LASER-based, Time-of-Flight sensor used for motion, safety and presence detection in a variety of industrial door applications. This highly-configurable solution offers the benefits of activation and safety, while reducing installation time.

This IP65 rated sensor creates a volumetric detection area by generating seven angled LASER curtains. It has the ability to detect objects based on direction, speed, object size and height. The LZR-WIDESCAN detection field operates independent of ground conditions, allowing for superior functionality in harsh environments.

Easily configure sensor settings with the LZR-WIDESCAN mobile app. The mobile app provides a complete view of sensor settings, from field configurations to immunity.

  • Specifications

    TECHNOLOGY

    LASER scanner, Time-of-Flight measurement
    (7 LASER curtains)

    DETECTION MODE

    Motion, presence, height, and speed

    MAX. DETECTION FIELD
    WIDTH / DEPTH


    1.2 x mounting height
    (adjustable depending on user settings)

    THICKNESS OF FIRST CURTAIN

    ¼”

    TYP. MOUNTING HEIGHT

    6’6” – 32’

    TYP. MINIMUM OBJECT SIZE

    6” @ 19’6” (in proportion to object distance)

    TEST BODY DIMENSIONS

    27 ½” × 11 ¾” × 7 ¾”

    MIN. REFLECTIVITY FACTOR

    > 2% (of floor and object)
    (measured at max. 19’6” in safety field)

    EMISSION CHARACTERISTICS
    IR LASER

    RED VISIBLE LASER


    Wavelength 905 nm;
    output pulse power 0.10 mW (CLASS 1)
    Wavelength 635 nm;
    maximum output power 0.95 mW (CLASS 2)

    SUPPLY VOLTAGE

    12 – 24 VAC ±10%
    12 – 30 VDC ±10% @ sensor terminal

    POWER CONSUMPTION
    HEATING: OFF
    HEATING: ECO OR AUTO


    < 2.5 W
    < 10 W, max 15 W

    RESPONSE TIME

    Typ. 230 ms; max. 800 ms
    (depending on immunity settings)

    OUTPUT

    2 solid-state relays (galvanic isolation, polarity free)
    24 VAC / 30 VDC (max. switching voltage) – 100 mA (max.
    switching current)
    - in switching mode: NO / NC
    - in frequency mode: pulsed signal (f= 100 Hz ±10%)

    1 electro-mechanic relay (galvanic isolation, polarity free)
    42 VAC / VDC (max. switching voltage) – 500 mA (max.
    switching current)

    INPUT

    30 VDC (max. switching voltage)
    low < 1 V       high > 10 V (voltage threshold)

    BLUETOOTH COMMUNICATION

    Operating bandwidth: 2402 - 2480 MHz
    Max. transmitted power: 12 dBm

    LED-SIGNAL

    2 tri-colored LEDS: Output status / Remote Control
    Response / Error Signals
    1 Blue LED: Bluetooth status

    DIMENSIONS

    7 ¾” (H) x 6” (W) x 4” (D) (approx.)

    MATERIAL / COLOR

    PC / ASA / Black

    ROTATION ANGLES ON BRACKET

    45° to the right, 15° to the left (lockable)

    TILT ANGLES ON BRACKET

    -10 – 5°

    DEGREE OF PROTECTION

    IP65

    TEMPERATURE RANGE

    -22 – 140 °F

    NORM CONFORMANCE

    IEC 61000-6-2, IEC 61000-6-3, IEC 60950-1, IEC 60825-1,
    ISO 13849-1 Pl “d”/ CAT2, IEC 62061 SIL 2
